Spectrophotometer

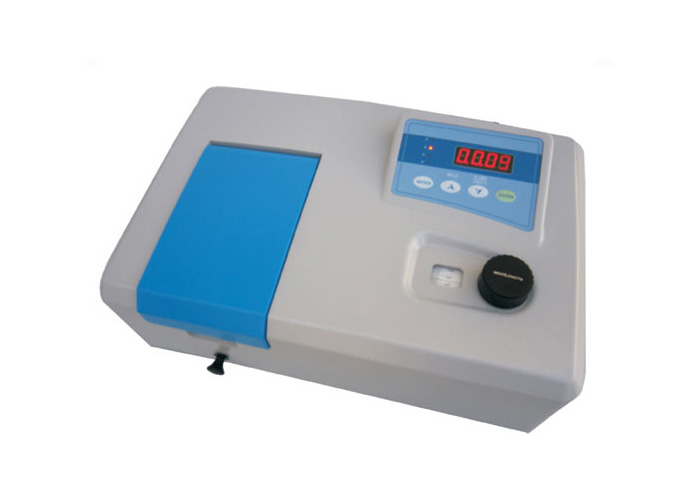

Microprocessor Visible Spectrophotometer
Range 325-1000nm
4 Digit Seven Segment Bright Red LED Display
Easy to Use, Press one button for easy switching of %T, Abs., Conc. modes
Auto Zero and Blank
Printer Attachment Facility
PC connectivity through USB port
2nm wavelength resolution
Large Sample Compartment, can accommodate 5-100 mm path length cuvettes with optional holders.

Optics : Single Beam, Grating 1200 lines/mm
Wavelength Range : 325 - 1000 nm
Wavelength Resolution : 2 nm
Spectral Bandwidth : 4 nm
Wavelength Accuracy : ± 2 nm
Photometric Accuracy : ± 0.5 %T
Photometric Repeatability : 0.3 %T
Photometric Range : 0 - 200 %T, - 0.3 to 3A, 0 - 9999 Conc.
Photometric Mode : %Transmission, Absorbance, Concentration and K Factor
Stray Light : < 0.3 %T
Stability : ± 0.002 A/h @ 500 nm
Display : 4 Digit 7-Segment Bright Red LED
Detector : Silicon Photodiode
Output : USB port for PC Connectivity, Parallel Port for Dot Matirx Printer
Power : 230 V ±10% AC, 50 Hz
Sample Compartment : Standard 4-Position 10 mm Path length cuvette holder. (Accommodates up to 100mm
path-length cuvette with optional holder)
Accessories: 10 mm Glass Cuvettes - A set of 4 Mains Lead, Black Block, Operation Manual and Dust Cover
